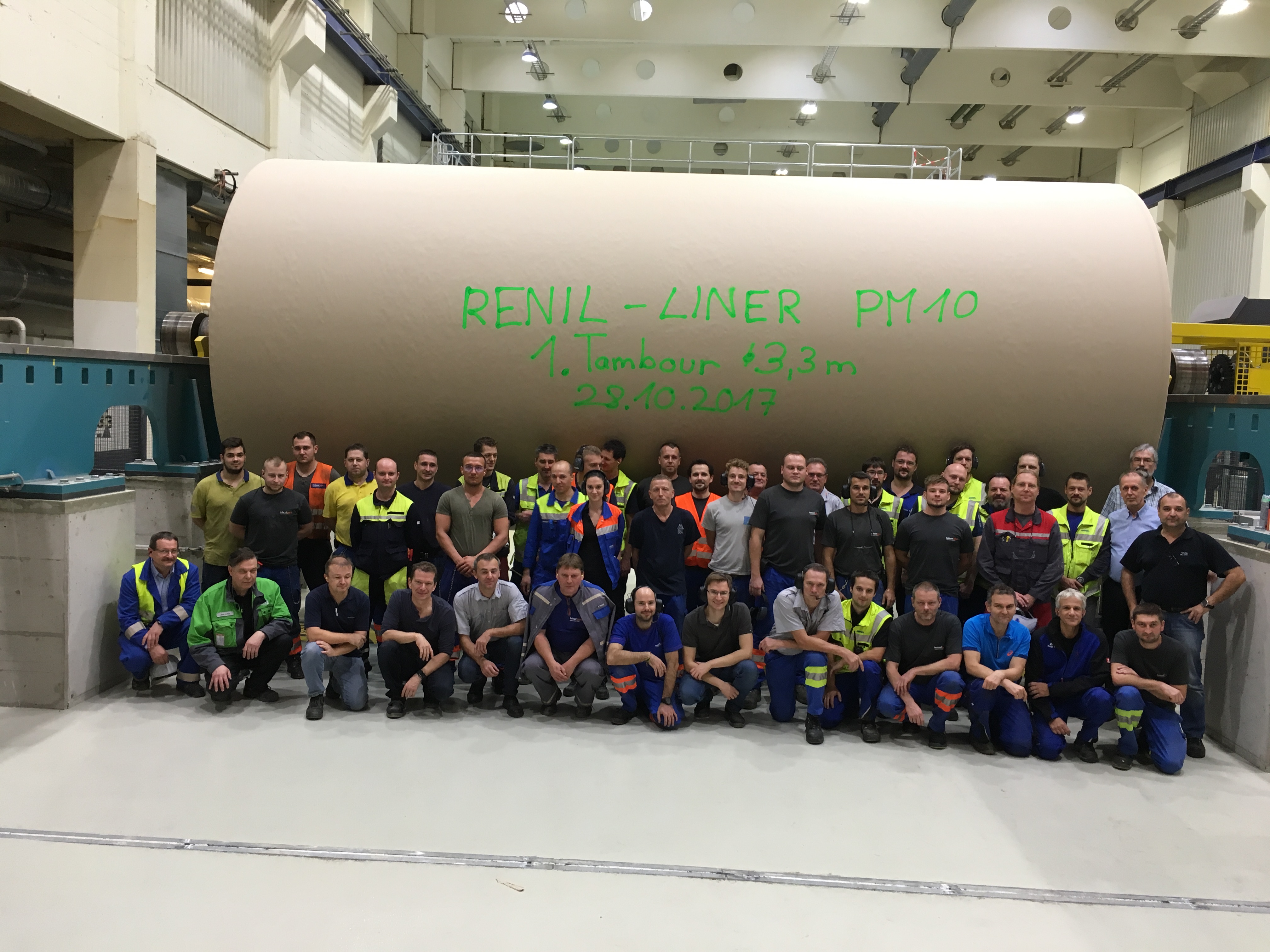

Andritz successfully starts up rebuilt paper machine for Heinzel Group in Laakirchen, Austria

0
1984

Customer: Heinzel Group

Supplier: Andritz

Location: Laakirchen Mill

Production: The machine that originally produced SC paper was converted to a fluting and testliner machine producing basis weights ranging from 70 to 140 g/m² based on recycled fibers. Now one of the world’s most productive paper machines for fluting and testliners

Start-up: December 2017

Design speed: 1,600 m/min

Width: 7,500 mm

Description: Andritz has successfully started up the rebuilt PM10 at Laakirchen paper mill for the Heinzel Group, Austria. The machine that originally produced SC paper was converted to a fluting and testliner machine producing basis weights ranging from 70 to 140 g/m² based on recycled fibers.

Details: In the stock preparation section, the Andritz scope of supply comprises a complete OCC line with a capacity of 1,350 t/d, rebuild of the existing paper machine approach flow system, as well as sludge and reject handling. The pulping system with detrashing includes a 130 m³ FibreSolve FSR pulper, which is the largest low-consistency pulper Andritz has ever installed in Europe. The rebuilt paper machine features a PrimeFlow TW double-layer headbox with PrimeProfiler F consistency profiling system. This headbox enables best surface profiles at maximum production flexibility with the stiff separating lamella between the layers. The new PrimeForm TW gap former with a specially designed forming suction roll for higher dewatering capacity gently dewaters the web and ensures high retention rates. Forming shoes at both the top and bottom ensure optimized dewatering within a broad operating window. In combination with the PrimeFilm Sizer unit, high strength is achieved in the end product.

In the first drying group, PrimeRun Evo web stabilizers were installed to improve the runnability of the machine after the press section. PrimeRun Evo web stabilizers are high-vacuum boxes with three different vacuum zones in one box. Thus, the web can be removed carefully from the surface of the drying cylinder. In addition, PrimeRun Duo web stabilizers were installed in the existing pre-drying section and in the new after- drying section to enable an even web run throughout the drying section. Instead of cast iron cylinders, PrimeDry Steel cylinders are used to achieve the targeted production capacities. They provide up to 7% more drying capacity compared to same-sized cast iron cylinders at the same operating pressure and thus enable either increased production or reduced energy consumption within the space available. In addition, a new air system including heat recovery for the rebuilt drying section was installed to provide energy-efficient paper production. The new PrimeFilm Sizer applies surface starch to both sides of the paper web simultaneously to achieve the requested strength values. This starch application technology was installed due to the high speed of the machine. The PrimeAir Glide air-turn and the PrimeFeeder tail threading system result in gentle web turning and reliable and fast tail threading.
